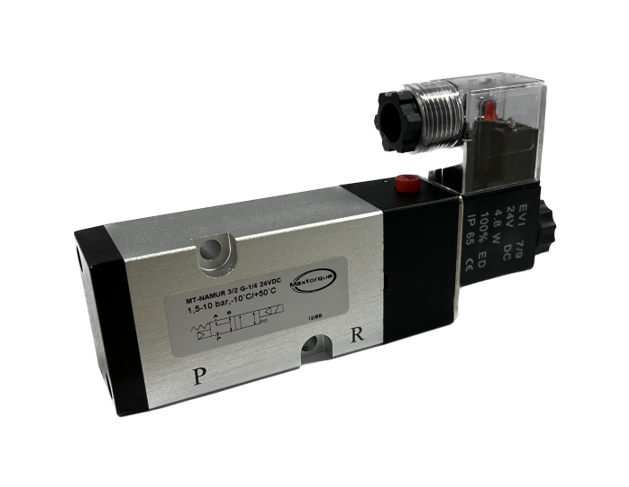

3/2-WAY ¼’’BSP 24VDC SERVO ASSISTED DIRECTIONAL CONTROL VALVE (dcv), single coil/spring return, nbr
The 3M series in-line solenoid valve is a versatile component designed to function as 3/2- way DCV (3 ports & 2 positions). These valves are commonly used for controlling single-acting pneumatic actuators or cylinders and can be used in processing equipment. Working pressure from 1.5 bar to 10 bar and the working voltage 24VDC (50/60HZ).
The spool and body of the valve are made from extruded aluminium, which is known for its lightweight & durable properties. They are also anodized coated, which provides protection against corrosion. The spool and body are made from extruded aluminium and anodized coated. The valve is rated at IP65, a high level of protection against dust and water ingress. This makes it suitable for both indoor and outdoor environments where it may be exposed to moisture or dust.
Operating Temperature Range of -10°C to 50°C allows it to function effectively in various environmental conditions, including cold and hot temperatures.
