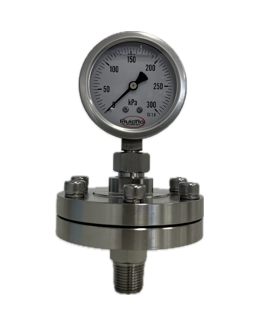

Pressure Gauge with Guard

This Pressure Gauge with Guard is designed for use with both gaseous and liquid media and is filled with glycerin for shock resistance. It features a diaphragm seal made of either FPM or PTFE on the medium side. Available in 1/4″ – 1/2”NPT/BSP sizes, with the option of a lower mount or center back, this gauge is constructed using 316 stainless steel for the case and 304 stainless steel for the crimped ring. It also includes a ventplug at the top. The Bourdon tube is made of 316L and the movement is 304 stainless steel. This pressure gauge conforms to EN 837-1 and ASME B40.100 specifications and is ideal for use in various process industries such as chemical plants, petro-chemical refineries, pharmaceutical facilities, food and beverage processing plants, papermills, salt mines, and fertilizer plants.
